Universal Autofocus Video Microscope VM-128

Attribute:

Universal Autofocus Video Microscope VM-128

Universal Autofocus Video Microscope VM-128

Product Feature :

  • The integrated design of autofocus and zoom, eliminating the need for time-consuming and laborious frequent focus adjustments;
  • Hight working distance, large field of view, up to 28x zoom ratio;
  • Equipped with a high-definition HDMI camera, directly connected to the monitor for taking pictures or videos;
  • Cast iron base, rust and wear resistant metal column, aluminum alloy crossbar with rack and pinion telescopic adjustment;
  • With universal support, expand the operating range, can be any direction to observe objects, three-dimensional sense of strong;
  • 4K HD image quality with true color reproduction;
  • USB output video resolution, supporting up to YUV 4K@20fps;
  • Rich output interfaces and control interfaces, supporting multiple control infaces such as mouse and keyboard;
  • Equipped withj adjectable dual fiber optic light source, independent control of light brightness;
  • Optical magnification 1x~28x, digital magnification 1x~3x, support digital magnification.



Specification :

CommodityUniversal Video MicroscopeWorking Distance (mm)
ModelVM-128
Article Code #451-128
Digital MagnificationZoom ratio 1x~28x
Optical Magnification1x~3x
Camera ParameterSensor TypeColor CMOS
Effective Pixel8 Million Pixel
Target Surface Size1/2.8
MenuFull Digital UI Design
Display Frame Rate4K@20fps/1080P@50fps
Scanning MethodLine by Line Scanning
White BalanceManual / Automatic
Exposure MethodManual / Automatic
Electronic Shutter Speed1/50s(1/60s)~1/10000s
Working Distance10cm~∞
MenuFull Digital UI Design
Storage MethodPC-USB
Working PowerDC12V
Output MethodUSB/Web Port/HDMI
Vertical Column Height380mm
Diameterφ32mm
Horizontal Movement235mm
Base230x230x40mm
Dimension490x230x430mm
Application IndustrySMT,PCB,BGA,etc

Working distance to Zoom Ratio :

Magnification (zoom ratio)FOV (100mm Working Distance)FOV (300mm Working Distance)
1X165mm*89mm441mm*240mm
2X97mm*54mm227mm*128mm
3X72mm*40mm161mm*91mm
4X60mm*34mm126mm*71mm
5X53mm*29mm106mm*60mm
14X23.4mm*13mm46.6mm*26mm

Standard Configuration :

CommoditySpecificationCommoditySpecificationCommoditySpecification
Instrument mainframeVM-128Power adapterDC12VMouseWireless

Optional Accessories :

Commodity Code #
0.5X accessory objective lens423*053
Double Fiber Optic Light Source SLG-20413-228
2X Accessory objective lens423*203
Color CMOS camera484-121
17"HD LCD484-465
Certificate of conformity / Warranty Card / Packing List / ManualVM-128

Stand Options :

Stand Options :

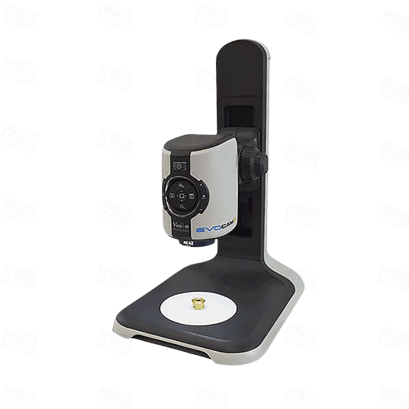

Ergo standSmall footprint, high stability for high magnification use. Optional sub-stage illumination. Floating stage can be fitted. Small monitor mount can be fitted.
Multi-axis standPrecise and robust. Ideal for industrial application where maximum work space is required. Counter-balanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available). Small monitor mount can be fitted.
Double boom standFor stability and extended reach. Available with direct mounting to work surface or platform base.
Single-arm boom standHigh stability, large working distance range, heavy duty platform base.
Bench standCompact, low profile base with substage
Articulated arm standExtended reach and ultimate flexibility to allow precise positioning.

Software Options :

On-board camera, lighting and zoom controls are standard. Also includes tools for: using overlays, grids, cursors, calibration & dimensioning. Focus Stacking is optionally available. When connected to a PC, there are severel options:

Software Options :
ViCaptureImage and video capture.
DimensionOneImage capture, annotation, on-screen measurement.
DimensionTwoImage capture, annotation, on-screen measurement, camera control.
VifoxEVOImage capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlusImage capture, annotation, on-screen measurement, camera control, reporting.

Power Supply :

  • Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.

Accessories :

Accessories :
Remote control consoleFor hand-held camera control; improves user confort and includes quick access to pre-sets.
Floating stageFor smooth and precise control. For use with Ergo stand and Bench stand only.
FiltersA range of filters are available to enhance details and contrast: including colour temperature and polarisers.
Ergo stand monitor mountFor mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint and easy adjustment.
Multi-axis stand monitor mountFor mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint, easily adjustable, and can move with the stand height adjustment.
