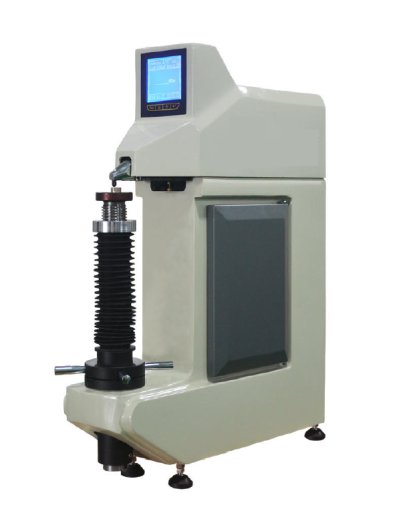

TMDigiRock DS3 Digital Superficial Rockwell Hardness Tester


TMDigiRock DS3 Digital Superficial Rockwell Hardness Tester


ARC VISION DigiRock DS3 Digital Superficial Rockwell Hardness Tester

DigiRock DS3 Digital Superficial Rockwell Hardness Tester

Product Feature :

► Semi automatic headness tester except loading initial force and change force knob.

    Opetation is very convenient and fast.

► Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.

► Built-in micro processor auto compute max, min, mean and deviation value, resolution

    is 0.1HR, largely improve accuracy.

► Auto hardness conversion to others scales, no need to check table and improve working


► Support Multiple languages, English, Turkish, German, etc. Convenient for local customer


► With 2000 single testing results and 1000 group results. Reviewing results and analysis.

► Optional bluetooth mini printer is available.

Specification :

Product NameDigital Superficial Rockwell Hardness Tester
ModelDigiRock DS3
Rockwell ScalesHR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Preliminary Test Force3Kgf(29.42N)  Permitted Error:±2.0%
Addtional Test Fore147.1N(15kg)、294.2N(30kg)、441.3N(45kg)   Permitted Error:±1.0%
Dwell TimeAdjustable 1-60s
Hardness Indication5.2" Touch Screen, Resolution:640x480
Loading ControlAuto Loading/Dwell/Unloading
Hardness ConversionHRC, HV, HBS, HBW, HK, HRA, HRD, HRB
Conversion StandardASTM, DIN
Language OptionChinese, English, German, Portuguese, Turkish, Czech, Korean
Correction Range-3.0HR to +3.0HR, Step 0.1HR
Data Memory2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis
Data OutputOptional Blue Tooth Mini Printer
Max. Height Of Specimen175mm
Instrument Throat165mm
Power supplyAC220V/50Hz;AC110V/60Hz
Packing Dimension620x460x870mm
Gross/Net Weight120Kg/90Kg
Execution StandardGB/T230.2;EN-ISO6508,ASTME-18
