Depth Micrometer SERIES 128

Attribute:

Depth Micrometer SERIES 128

Choose

Categories : Small Tools Depth Gages

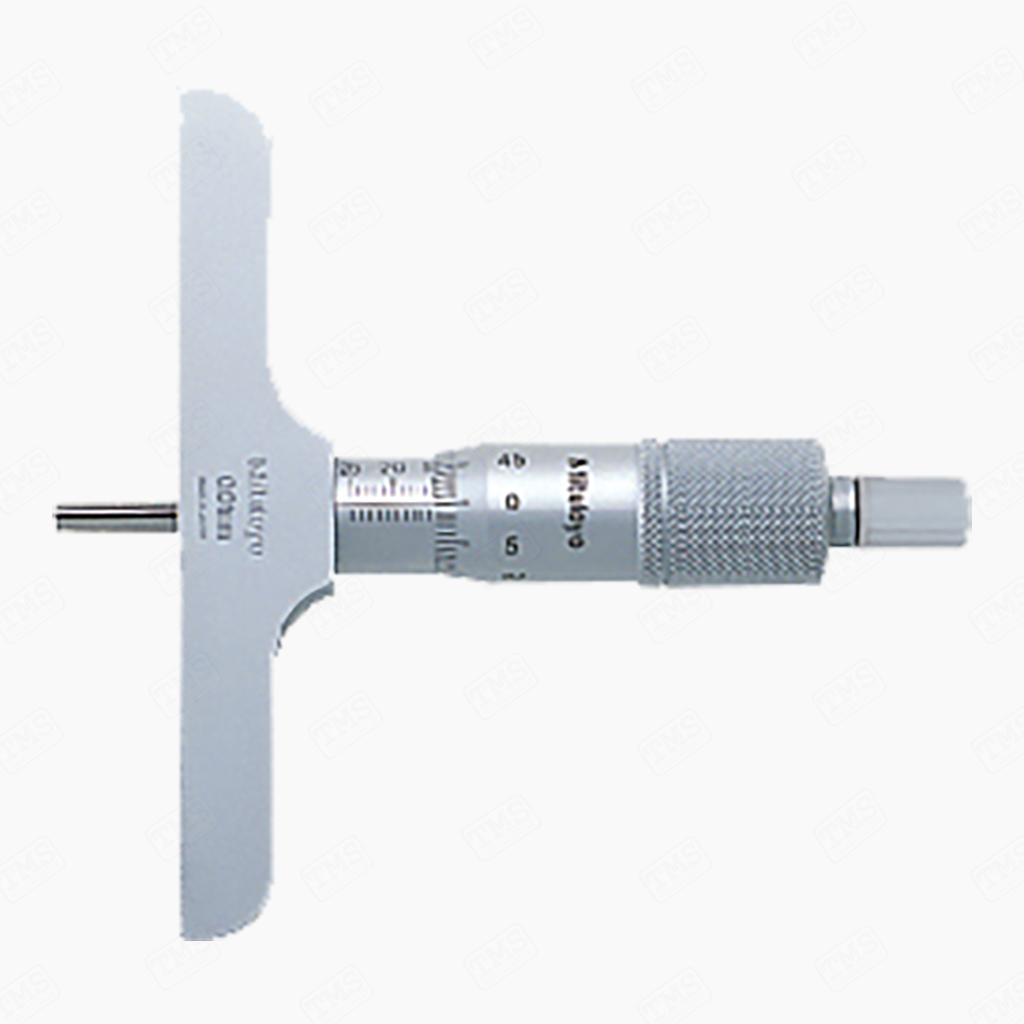

Depth Micrometer Series 128


FEATURES

• Ø4mm measuring rod.
• With measuring rod clamp.
• With carbide-tipped measuring rod model is available.
• With ratchet stop for constant force.


Technical Data
Accuracy: ±3µm for micrometer head feed
Graduation: 0.01mm or .001¡±
Flatness of reference face: 1.3¥ìm for 63.5mm width base, 2¥ìm for 101.6mm width base
Flatness of measuring rod face: 0.3¥ìm
Parallelism between reference face and measuring rod face: (4+L/50)¥ìm, L=Max. measuring length (mm)
Measuring rod diameter: 4mm
*with carbide-tipped measuring rod

SPECIFICATIONS

 Metric

Order No.
Range
Graduation
Base
128-1010-25mm0.01mm63.5x16 mm
128-102101.6x16 mm
128-103*63.5x16 mm
128-104*101.6x16 mm

*1 with carbide-tipped measuring rod

 Inch

Order NoRangeGraduationBase
128-1050-1in0.0005"/0.01mm2.5 x 63 in
128-1064x.63 in
