Vernier Height Gage Series 514
Attribute:

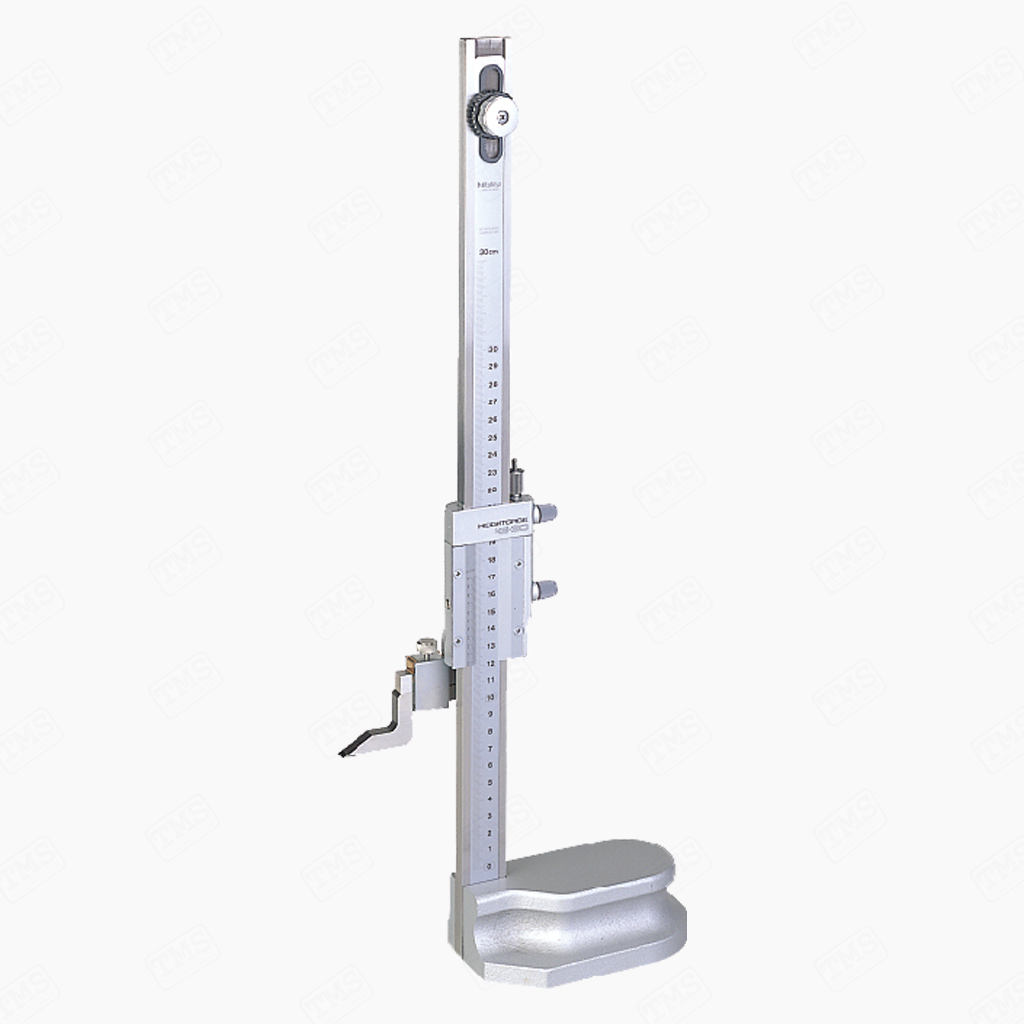

Vernier Height Gage Series 514 - Standard Height Gage with Adjustable Main Scale
Choose
Categories : Small Tools , Height Gage ,
Vernier Height Gage Series 514 - Standard Height Gage with Adjustable Main Scale
Metric
| Order No. | Range | Graduation | Accuracy | Scale adjustment | Fine feed | Height | Mass | Remarks |
| 514-102 | 0-300mm | 0.02mm | ±0.04mm | 15mm | 4mm | 525mm | 3.1Kg | — |
| 514-104 | 0-450mm | ±0.05mm | 675mm | 3.4Kg | — | |||
| 514-106 | 0-600mm | 7mm | 870mm | 7.4Kg | — | |||
| 514-108 | 0-1000mm | ±0.07mm | 25mm | 6mm | 1340mm | 20Kg | — | |
| 514-170 | 0-1500mm | 0.05mm | ±0.18mm | 20mm | 1760mm | 26Kg | with magnifer |
Inch/Metric
| Order No. | Range | Graduation | Accuracy | Scale adjustment | Fine feed | Height | Mass | Remarks |
| 514-103 | 0 - 12” | .001”/0.02mm | ±0.02mm | .6" | .16" | 525mm | 3.1Kg | — |
| 514-105 | 0 - 18” | 675mm | 3.4Kg | — | ||||
| 514-107 | 0 - 24” | .27” | 870mm | 7.4Kg | — | |||
| 514-109 | 0 - 40” | ±0.03mm | 1” | .24” | 1340mm | 20Kg | — |
Series 514
FEATURES
• Zero reference point can be adjusted.
• Stain chrome finished scales for glare-free reading.
• Extra-large base for rigidity.
• Optional magnifier for easier reading
• Carbide-tipped scriber is provided.
Technical Data
• Main scale adjustment: 15mm or 25mm
• Slider fine feed: 4mm, 6mm, 7mm or 20mm
Standard Scriber Provided
• Up to 600mm: Carbide-tipped scriber (07GZA000) and scriber clamp (05GZA033)
• 0 - 1000mm: Carbide-tipped scriber (905200) and scriber clamp (05GZA033)
• 0 - 1500mm: Carbide-tipped scriber (900390) and scriber clamp (905008)
Optional Accessories
• 07GZA003: Magnifier for 300, 450mm, 600mm models
• 07GZA015: Magnifier for 1000mm and 1500mm models
• 953638: Holding bar for test indicator (length: 50mm)
• 902053: Swivel clamp used with holding bar
DIMENSIONS
