Baty SM20 Profile Projector

คุณสมบัติสินค้า:

เครื่องวัดชิ้นงานแบบฉายภาพแบรนด์ Baty รุ่น SM20

Choose

เครื่องวัดชิ้นงานชนิดแสงเงา

แบรนด์ Baty รุ่น SM20

The Baty SM20 is a vertical light path floor standing profile projector with a 500 mm / 20” screen which features a large heavy duty high precision workstage with 250 mm x 125 mm measuring range and a 0.5 micron resolution.

คุณสมบัติด้านเทคโนโลยี :

  • 500 mm screen with 90 degree crosslines and chart clips
  • Angled screen for easy viewing
  • Profile illumination with halogen lamp and green filter
  • Surface illumination through twin fibre optics for bright full colour surface inspection
  • Single lens mounting
  • Lens magnification choice: 5x, 10x, 20x, 25x, 50x and 100x
  • Helix adjustment of light source for accurate thread form projection
  • Large stage travel 10″(250 mm) x 5″(125 mm)
  • Digital angle measurement
  • 0.5 micron resolution

Projector TypeSM20
Magnification10x20x25xx2550x100x
CondenserLLLSSS

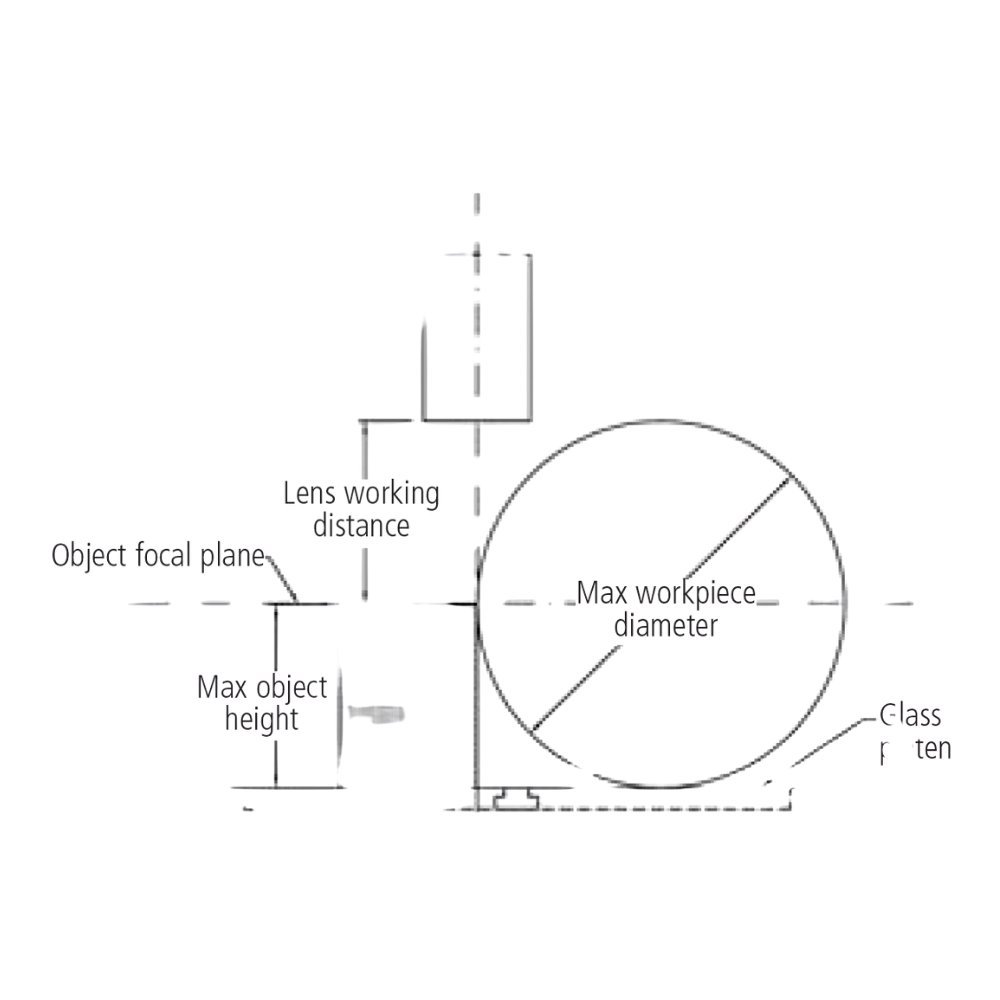

Field of view50252020105
Max diameter20020020020018085
Max focal pane height (profile lighting)205203218254240195
Max end mill height (surface lighting)150153153155150150


Code No.DescriptionFunctions
SM20-XLSVertical projector with Acu-rite DC102 readoutBasic X, Y and rotation measurement
SM20-GXLVertical projector with Quadra Chek 2023 touch screen readoutGeometric measurement functions and tolerancing
SM20-FT2-EVertical projector with Fusion 2D touch screen DRO & optical edge detectionWindows 22″ touch screen with full reporting
and optical edge detection
SM20-FT2Vertical projector with Fusion 2D touch screen DROAs FT2-E without optical edge detection
