กล้องวัดชิ้นงานด้วยความเร็ว
คุณสมบัติสินค้า:

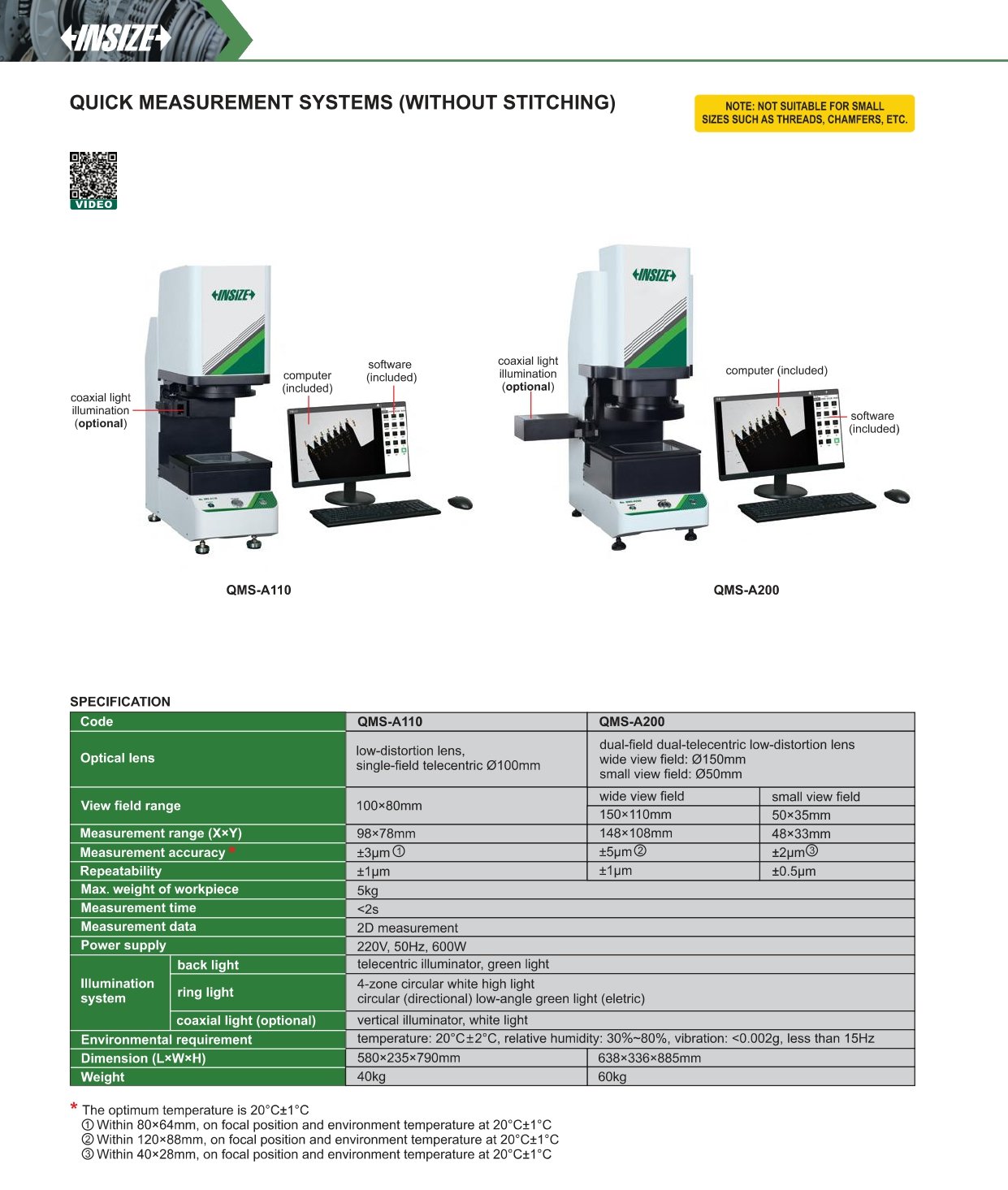

เครื่องวัดชิ้นงานแบบฉายภาพแบรนด์ INSIZE รุ่น QMS Series
แบรนด์ : INSIZE
Quick measuring machine
Brand : INSIZE Model : QMS Series
Product Features :
| Technical Specifications: | |||
| Code | QMS-A110 | QMS-A200 | QMS-A200 |
| Optical lens | low-distortion lens, single-field telecentric Ø 100 mm | Dual-field dual-telecentric low-distortion lens wide view field : Ø 150 mm small view field : Ø 50 mm | Dual-field dual-telecentric low-distortion lens wide view field : Ø 150 mm small view field : Ø 50 mm |
| view field range | 100 x 80 mm | wide view field | small view field |
| 150 x 110 mm | 50 x 35 mm | ||
| Measurement range (X x Y) | 98 x 78 mm | 148 x 108 mm | 48 x 33 mm |
| Measurement Accuracy | ±3um within 80x64 mm, on focal position and environment temperature at 20C +/- 1 C | ±5um within 120x88 mm, on focal position and environment temperature at 20C +/- 1 C | ±2um within 40x28 mm, on focal position and environment temperature at 20C +/- 1 C |
| Repeatability | ±1um | ±1um | ±0.5um |
| Max weight of workpiece | 5 Kg | ||
| Measurement time | <2S | ||
| Measurment data | 2D measurement | ||
| Power supply | 220 V, 50 Hz, 600W | ||
| illumination system (back light) | telecentric illuminator , green light | ||
| illumination system (ring light) | 4 zone circular white high light circular (directional) low-angle green light (electric) | ||
| illumination system (coaxial light) *optional* | vertical illuminator , white light | ||
| Environmental requirement | temperature : 20 C +/-2 C , relative humidity : 30%-80% , vibration : <0.002 g, less than 15Hz | ||
| Dimension ( LxWxH ) | QMS-A110 : 580 x 235 x 790 mm QMS-A200 : 638 x 336 x 885 mm | ||
| Weight | QMS-A110 : 40 Kg QMS-A22 : 60 Kg | ||
