X-Ray Inspection Measursing System
คุณสมบัติสินค้า:
Deeply rooted in the manufacturing of metrology equipment for 2D X-ray, 2.5D imaging, and 3D lasers, the company boasts Taiwan's only Level 2 laboratory certified by TAF for large-stroke image measuring instruments and projectors, and is also the only Level 2 laboratory in central Taiwan certified by CNLA for projectors and compliant with ISO/IEC 17025 standards.
แบรนด์ : Arcs
เครื่องวัดชิ้นด้วยนวัตกรรมใหม่ล่าสุด จากประเทศไต้หวัน

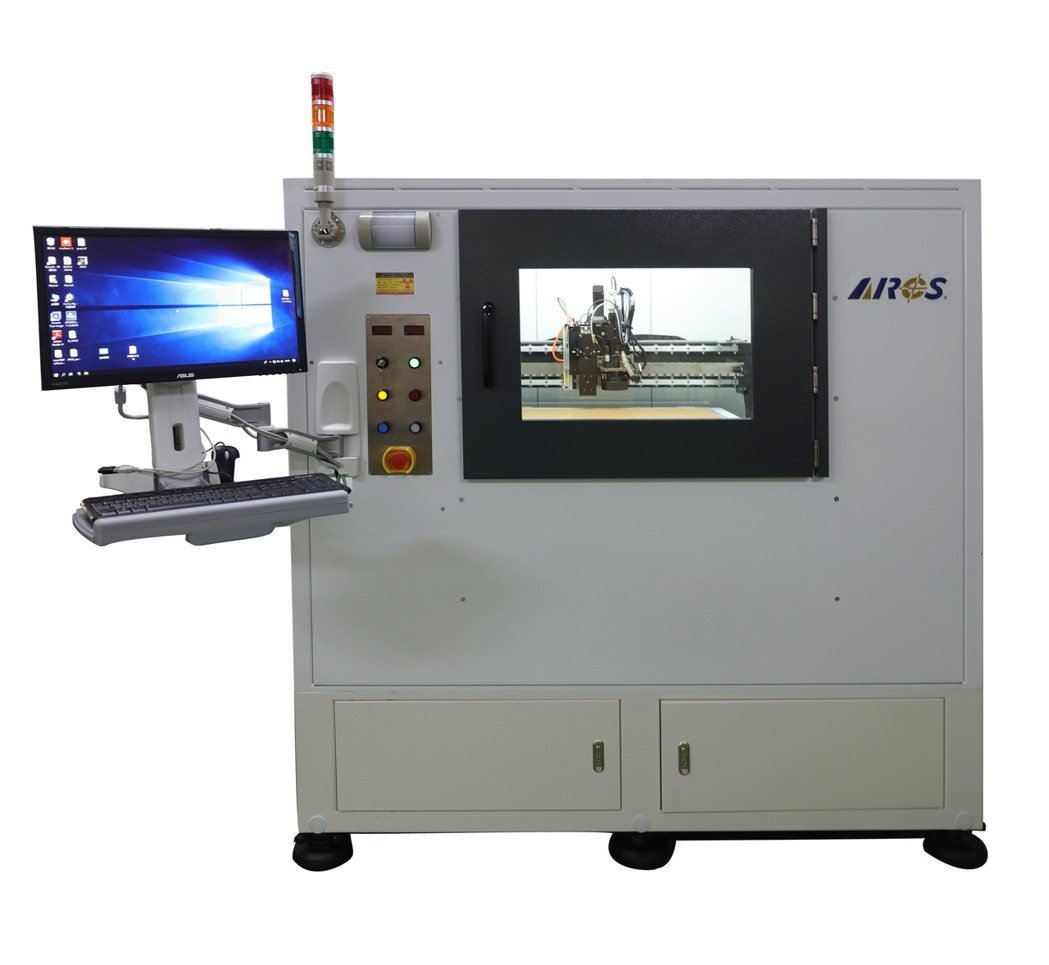

แบรนด์ ARCS รุ่น IMS-6272X Series
คุณสมบัติด้านเทคโนโลยี :
High accuracy and excellent repeatability
- This equipment is used to measure the expansion and contraction of PCB boards after lamination and observe the misalignment within the board. It can analyze phenomena and summarize problems , help identify process problems and improve the process. In addition, the optical system can assist in measuring the surface dimensions ,Angle and position of the products. ARCS 's software SI-903 exclusive X-ray automatic image measurement and analysis software, it is easy to learn, easy to use and more powerful to operate. It reduces human error and improves work efficiency.
- PCB products such as the inner layer analysis of multi-layer board inner lay , IC boards, module circuit boards , flexible circuit boards and high-density connection boards, etc.
| Features Specifications: | |
| Travel / Stage size | 24 inch x 28 inch (620 mm x 720 mm) |
| Plate thickness for measurement | 0.5 mm - 8 mm |
| Exclusive plate fixture can prevent displacement and warping situation. | |
| Transmission | X and Y Axes-Linear Motor Z axis - Servo Motor |
| Linear Scale | X and Y axis -0.1 um Z axis -0.5 um |
| Radiation Leakage | < 0.1 uSv/Hr under national occupational safety standards. |
| Travel Speed | X and Y axis : 300 mm/ sec(max) Z axis : 100 mm / sec (max) |
| Software | SI-903 with Rise Shrinks Bracket function for X-ray measurement and analysis |
| Power Supply | |
| 1 phase ,AC 220-230V , 50/60Hz , Air pressure >0.5 MPA | |
| Dimension | 2393 mm(L) x 1745 mm(W) x 2005 mm(H) |
| G.W | 3000 Kg |
- Deeply rooted in the manufacturing of metrology equipment for 2D X-ray, 2.5D imaging, and 3D lasers, the company boasts Taiwan's only Level 2 laboratory certified by TAF for large-stroke image measuring instruments and projectors, and is also the only Level 2 laboratory in central Taiwan certified by CNLA for projectors and compliant with ISO/IEC 17025 standards.
| Technical Specifications: | |
| Model | IMS-6272X |
| X-Ray Tube | 60 Kv or 90 Kv;500W |
| Target Voltage range -4KV to 6KV | |
| X-Ray CCD | Effective area -18 x 11 mm, Resolution -16lp/mm Number of pioxels -1920 (H) x 1080 (V) Fram rate -Max 56 fps |
| Optical system | Zoom Lens -Automatic coaxial Zoom lens Magnification -0.7x to 4.5X ( 17.5x-112.5x) Video System High resolution, Hig Accuracy CCD, Hight speed video capture card illumication :Automatic adjustable surface (24 sections), contour illumination and coaxial light |
