VICKY VB-62.5 ARC VISION
คุณสมบัติสินค้า:
DIGITAL TWIN VICKERS / BRINELL HARDNESS TESTER
หมวดหมู่ : Vicker , เครื่องวัดความแข็ง , Brinell ,
DIGITAL TWIN VICKERS / BRINELL HARDNESS TESTER
VICKY VB-62.5

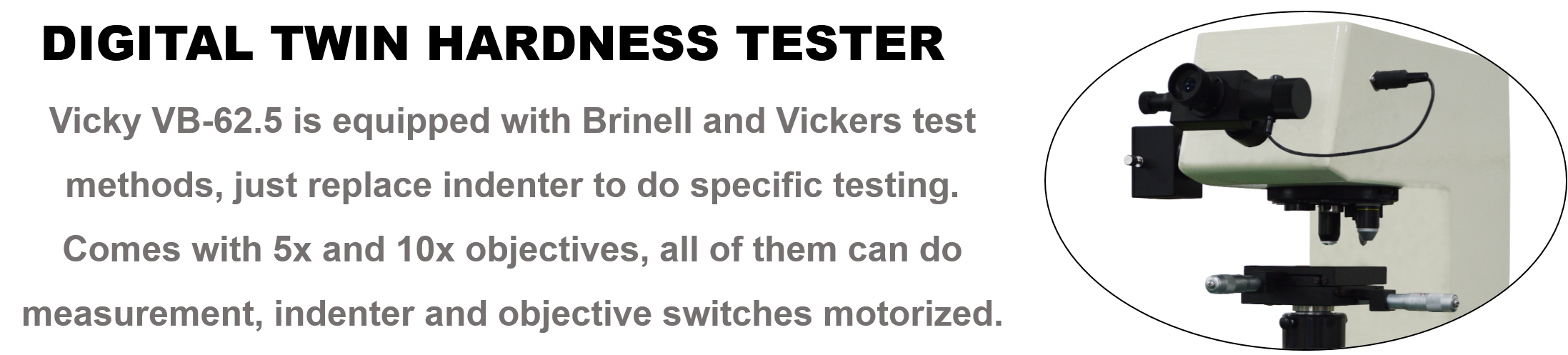

- Vicky VB-62.5 is equipped with Brinell and Vickers test methods, njust replace indenter to do specific testing.
- Standard delivery comes with 5x and 10x objectives, all of them can do measurement, indenter and objective switches motorized;
- Available to preset dwell time, illumination brightness
- Motorized turret, close loop loading system and touch screen/control panel input

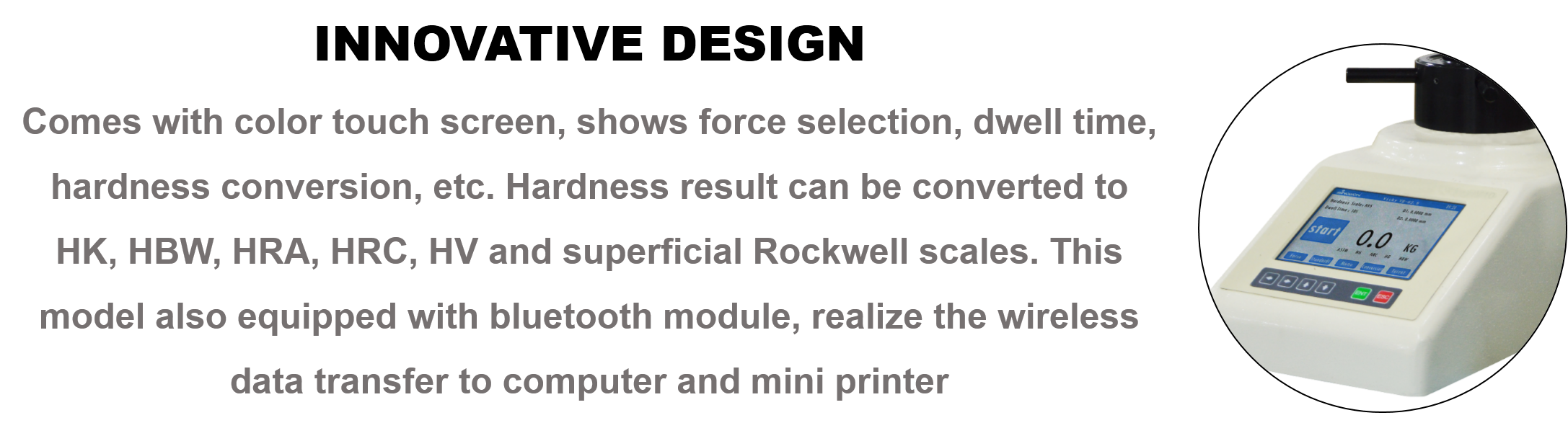

- Innovative design of color touch screen, shows force selection, dwell time, hardness conversion, etc
- Hardness result can be converted to HK, HBW, HRA, HRC, HV and superficial Rockwell scales
- Equipped with blue tooth module, realize the wireless data transfer to computer and mini printer
- In order to avoid operation erroroptional measurement software MV-200S and MB is a good choice.
| Product Name | Digital Twin Vickers/Brinell Hardness Tester | ||
| Model | Vicky VB-62.5 | ||
| Code | 821-300 | ||
| Test Force | kgf | 5, 6.25, 10, 15.625, 30, 31.25, 62.5 | |
| N | 49.0, 61.3, 98.0, 153.2, 294.2, 306.5, 612.9 | ||
| Brinell Scales | HBW5/62.5, HBW2.5/62.5, HBW2.5/31.25, HBW2.5/15.625, HBW2.5/6.25, HBW1/30, HBW1/10, HBW1/5 | ||
| Vickers ForceMicroscope | kgf | 1, 2, 2.5, 3, 5, 10, 20, 30, 50 | |
| N | 9.8, 19.6, 24.5, 29.4, 49.0, 98.0, 196, 294, 490 | ||
| Brinell Hardness Range | (8 – 650) HBW | ||
| Vickers Hardness Range | 8HV – 2967HV | ||
| Loading Control | Automatic (Loading/Dwell/Unloading) | ||
| Turret Control | Motorized Switch | ||
| Magnification | Observation: 5x/10x; Measurement: 5x/10x | ||
| Eyepiece | Digital Eyepiece 10x | ||
| Dwell Time | Adjustable 1-60s | ||
| Hardness Conversion Scales | HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB | ||
| Conversion Standard | ASTM, DIN | ||
| Operation Language | Chinese, Language, German, Turkish, Korean, etc | ||
| LCD Screen | 5.2″ Color touch screen，Resolution:640*480 | ||
| Max Height of Specimen | 170mm | ||
| Throat | 130mm | ||
| Power supply | AC220V/50HZ;110V/60Hz | ||
| Instrument Dimension | 535 x190 x585mm | ||
| Packing dimension | 610 x450 x770mm | ||
| Gross/Net weight | 47Kg/43Kg | ||
| Execute Standard | GB/T4340, ISO6506/6507, ASTM E10-12/E92, JIS Z2243 | ||
| Product Name | Code |
| Main Unit | 821-300 |
| Digital Eyepiece 10x | 831-241 |
| Hardness Block HV1 | 821-601 |
| Hardness Block HV10 | 821-621 |
| Hardness block HBW 62.5/2.5 | 831-651 |
| Hardness block HBW 30/1 | 831-661 |
| Ø1mm ball indenter | 831-401 |
| Ø5mm ball indenter | 831-421 |
| Ø2.5mm ball indenter | 831-431 |
| Ø200mm Test anvil | 831-551 |
| Ø40mm “V” test anvil | 831-521 |
| X-Y test anvil | 821-701 |
| Vickers indenter | 821-401 |
| Objective 5x | 831-301 |
| Objective 10x | 831-311 |
| Power cable | 831-801 |
| Accessories Case | 831-901 |
| Level | 831-831 |
| Anti dust cover | 831-911 |
| Packing list | Vicky VB-62.5 |
